Actions can be configured directly on the storyboard page or by clicking “Edit” from the toolbar.

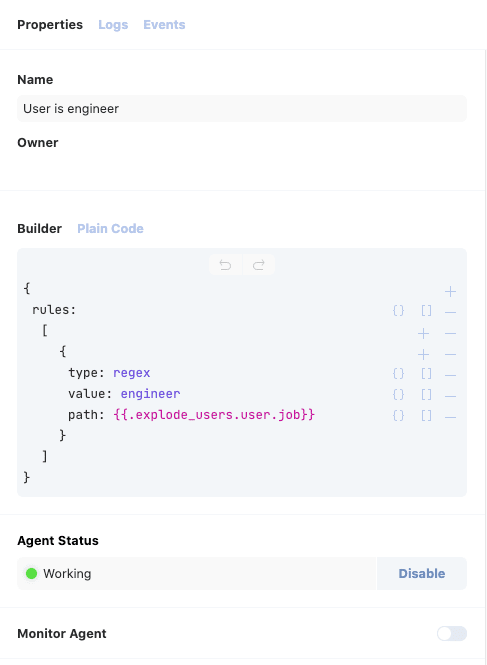

Actions are configured using a “Common Config” and an “Options block”. When creating and editing actions a page displaying both configurations is presented:

Common Config

All seven action types have a set of configuration options that describe the basic operation of the action, this is known as the action’s Common Config, a description of options included in the common config is shown below.

Name: Provide a name for the action.

Schedule: Depending on the action type, specify when the action should run.

Keep events: Specify how long events should be retained in Tines. When this period lapses, events will be purged.

Depending on the action type, all options may not be available in the common config. See the below table for a description of the availability of “Schedule”, “Sources”, and “Receivers”.

Action Type	Can be Scheduled	Can Receive Events	Can Emit Events
Email Action	Yes	Yes	Yes
Event Transformation Action	Yes	Yes	Yes
HTTP Request Action	Yes	Yes	Yes
IMAP Action	Yes	No	Yes
Trigger Action	No	Yes	Yes
Webhook Action	No	No	Yes
Send to Story Action	Yes	Yes	Yes

Source and Receiver Actions

When an action runs, either on a schedule or when an event is received from a source action, it will generate a new event and emit it to receiving actions.

As shown below, by dragging a string between actions, we define where events should be emitted. In this case, when the source action (“Webhook Action”) runs, it will emit events to the receiver action (“Deduplicate Events”).

Options Block

The options block defines the exact action an action should perform at run-time and is unique to each action type. The options block is a JSON object which consists of key-value pairs. Information from incoming events can be referenced in an action’s options block by including “wrapped JSONPaths”. Shown below is an example of an options block from an Email action. For detailed instructions covering the configuration of options blocks, see individual articles on action types.

{
  "recipients": "{{.recipient.emailAddress}}",
  "subject": "New Tines alert",
  "body": "Malicious behaviour has been detected."
}

Working with Events and JSONPaths

Every Tines event is a JSON object. The data within events can be accessed in action configurations using JSONPaths.

Note: JSONPath uses path expressions to navigate elements, nested elements, and arrays in a JSON document. For more information about JSON, see Introducing JSON.

{
  "customerName":"John Doe",
  "address":
  {
    "streetAddress":
    {
      "number":123,
      "street":"Sample Street"
    },
    "city":"Example Town"
  }
  "orders":
  [
    {
      "orderId":23284,
      "itemName":"Widget",
      "itemPrice":33.99
    },
    {
      "orderId":63122,
      "itemName":"Gadget",
      "itemPrice":22.50
    },
    {
      "orderId":77284,
      "itemName":"Sprocket",
      "itemPrice":12.00
    }
  ]
}

To insert information from an incoming event into an action’s options block, use the following syntax. Here, key_name is the name of the key to insert.

{{ .key_name }}

The following wrapped JSONPath will insert the value of the customerName key from the above, sample Tines event.

{{ .customerName }}

John Doe

To access information in a nested JSON key, use the following syntax:

{{ .key_name.subkey_name }}

The following wrapped JSONPath will insert the value of the city key from the above, sample Tines event.

{{ .address.city }}

Example Town

Accessing Data in Nested Keys

You can query further levels of subkeys using the following syntax.

{{ .address.streetAddress.street }}

Sample Street

Accessing Data in Arrays

Arrays are queried using an array index expression inside square brackets ([]). For example, the following wrapped JSONPath can be used to access the first element of the “orders” array:

{{ .orders[0] }}

{
  "orderId":23284,
  "itemName":"Widget",
  "itemPrice":33.99
}

The following wrapped JSONPath will return the itemPrice from the 2nd element of the orders array.

{{ .orders[1].itemPrice }}

{
  "orderId":63122,
  "itemName":"Gadget",
  "itemPrice":22.50
}

Important: It is often necessary to process every element of an array individually, this can be achieved using an Event Transformation Action in ‘explode’ mode.

API Autocomplete

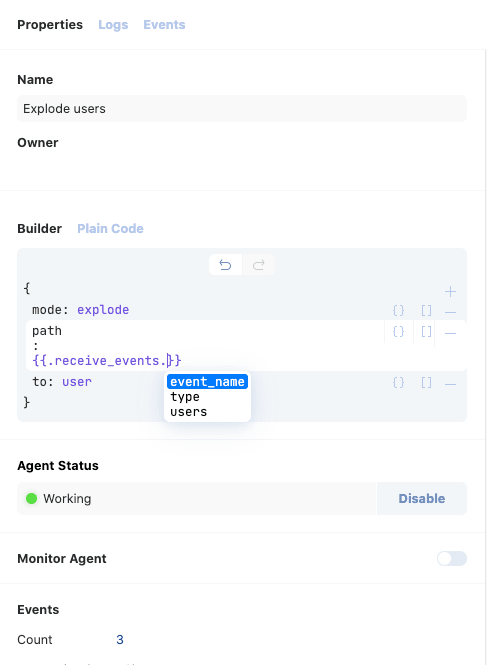

When editing or creating an action, ‘API Autocomplete’ allows you to more easily define JSONPaths in the options block. In an options block, when a period is entered between two sets of curly braces, Tines will provide a list of available keys from the most recent event emitted by the defined source action(s). When a key is selected and another period is entered, Tines will present the keys from the most recent event at that level.
